[Voodoo 5 5500] Highest Rev number?

[ggab]

gracias!

PS: i know it is a "bit" off-topic, i just posted a reply to Nightbird's comment about the 3 PowerColor 4500's cards, with only the Vga Monitor Output ....

bye

[no-X]

did i have a "rare?" PowerColor 4500 32mb AGP card?
(like, the "3 with only the Vga Monitor Output" ?)

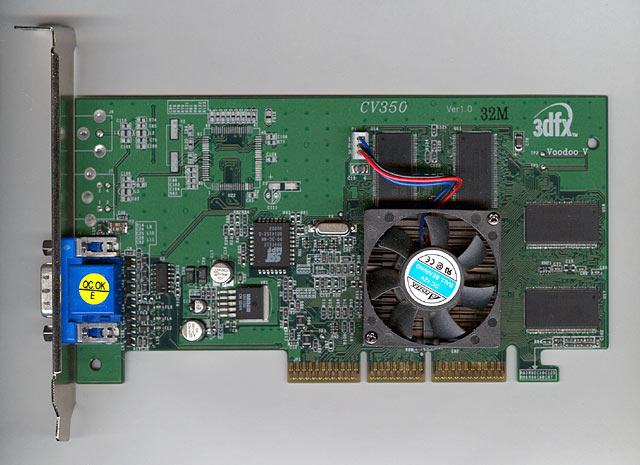

"low quality" pic:

No, this is NOT a PowerColor non-TVout card. All PowerColor V4 are "Made in Taiwan". But this one is "Made in China". Could it be from 3Dfx factory located in China (like some V3) Looks like a very rare V4 :-)

PowerColor - Evil King IV non-TV-out (non-L) is not a common card, too; but it is different - I own one



edit: here is a better picture: http://www.3dfx.cz/collections/no-x/ek4.jpg

This card was sold as retail, but cheaper "L" (OEM) version replaced it soon.

btw. here is actual list of built by 3Dfx Voodoos (revisions):
http://www.3dfx.cz/articles/rev.htm

[TM30]

i own a V4 4500 (standard 3dfx Layout) dated 3700 (Rev A0)

very late for a 4500 isn't it?

[NitroX infinity]

http://www.3dfx.cz/articles/rev.htm

@no-X:

My Voodoo 3 3000 AGP TV out 5199 C has 5,5ns Hyundai memory.
My Voodoo 3 3000 AGP TV out 1500 C has 6ns EliteMT memory.
Both have SDRAM.

[TM30]

thanks... so 4100 is the newest... my card is not listed there... never saw such an 4100 dated card...

[no-X]

Phalanx: updated

http://www.3dfx.cz/articles/rev.htm

TM30: What kind of SDRAMs does your 3700 A0 use?

[TM30]

it uses Hyundai TC-6

[TM30]

today i got a 5500 with Rev A2 and PCB Date of 3300... it has Toshiba 6NS RAM and has the AGP 4x notch... (but uses nevertheless 3,3v since Pin A2 on the backside of the AGP Connector is not connected... used a Multimeter (english: circuit analyzer ?!) for testing it...

[no-X]

Originally posted by TM30

today i got a 5500 with Rev A2 and PCB Date of 3300... it has Toshiba 6NS RAM and has the AGP 4x notch... (but uses nevertheless 3,3v since Pin A2 on the backside of the AGP Connector is not connected... used a Multimeter (english: circuit analyzer ?!) for testing it...

Updated
http://www.3dfx.cz/articles/rev.htm

[Rolo01]

@ no-x

The Daytona AGP build 4100 uses Hyundai RAM with 6ns.

[Chosen_One]

well...a little rev-show of my voodoos

v3 2000 agp: 2899 Rev.A

v3 2000 pci: 4099 Rev.A

v3 3000 agp: 4099 Rev.C

v3 3000 pci: 0600/1700 Rev.D

v3 3500 agp: 2299/2599/2999 Rev.A
3399/4099/4199/4200/5099 Rev.B
CompaQ: 0800 Rev.A

v4 4500 agp: 3300/3700 Rev.A0
Evilking 4 TV: 4800 Rev.A0

v4 4500 pci: 3700 Rev.A

v5 5500 agp: 2500 Rev.A

Q3D AAlchemy 8164: 3401 Rev.D

[benna]

do you have an AAlchemy 8164?
and does it work?

[r21vo]

My Voodoo5 5500 agp just arrived - it's rev. 2100 with Hyundai TC-6 RAMs.

[Chosen_One]

@benna: unfortunatelly our 12 AAlchemy 8164 (from VoodooAlert) do not work because they were cut into 2 parts....otherwise the seller wasn't allowed to sell them...it's a pity but i could never afford a working 8164

photos: http://www.3dfx.ch/gallery/collectors_chosen_one

[r21vo]

@Chosen_One: why?
