voodoo4 4800 and voodoo 3 4000

3dfxFanatic · 11 November 2003, 23:32:15

do these cards exist, and have they ever reached retail?

sloomy · 12 November 2003, 01:38:07

Yes the cards are existing, but they are only engineering samples from them.. None of both have reached retail ..

Rolo01 · 12 November 2003, 09:57:15

I dont know the V3-4000, but the V4-4800 exists, I have one...

NitroX infinity · 12 November 2003, 10:11:52

The V3 4000 was a rumour. A Voodoo 3 with AGP 4x support. As we all know, there's no Voodoo with AGP 4x support.
The V4 4800 does exist like Rolo01 said.

Damn Rolo01, where do you get all those special cards? First the V5 5000 and now the V4 4800. Lucky bastard [

]

ASUS P4S533 | Intel Pentium 4 2,261GHz | 512MB Samsung PC2700 DDR-SDRAM | Voodoo 5 5500 AGP

3dfxFanatic · 12 November 2003, 15:35:02

what's the difference between the v4 4500 and the 4800?

NitroX infinity · 12 November 2003, 15:37:42

The Voodoo 4 4800 has the VSA-101 core, DDR-SDRAM memory and DVI and TV-Out. And it's only an engineering sample.

ASUS P4S533 | Intel Pentium 4 2,261GHz | 512MB Samsung PC2700 DDR-SDRAM | Voodoo 5 5500 AGP

3dfxFanatic · 12 November 2003, 16:25:19

is the core @ higher speed than the 4500? above 166mhz?

NitroX infinity · 12 November 2003, 16:27:38

No, the VSA-101 cores actually run at 143MHz.

ASUS P4S533 | Intel Pentium 4 2,261GHz | 512MB Samsung PC2700 DDR-SDRAM | Voodoo 5 5500 AGP

Knuckles · 12 November 2003, 16:46:55

dont forget that the 4800 is PCI instead of AGP, And there IS Voodoos with AGP 1.5V, few ones but they exist(some V4 & v5)!

osckhar · 12 November 2003, 17:18:46

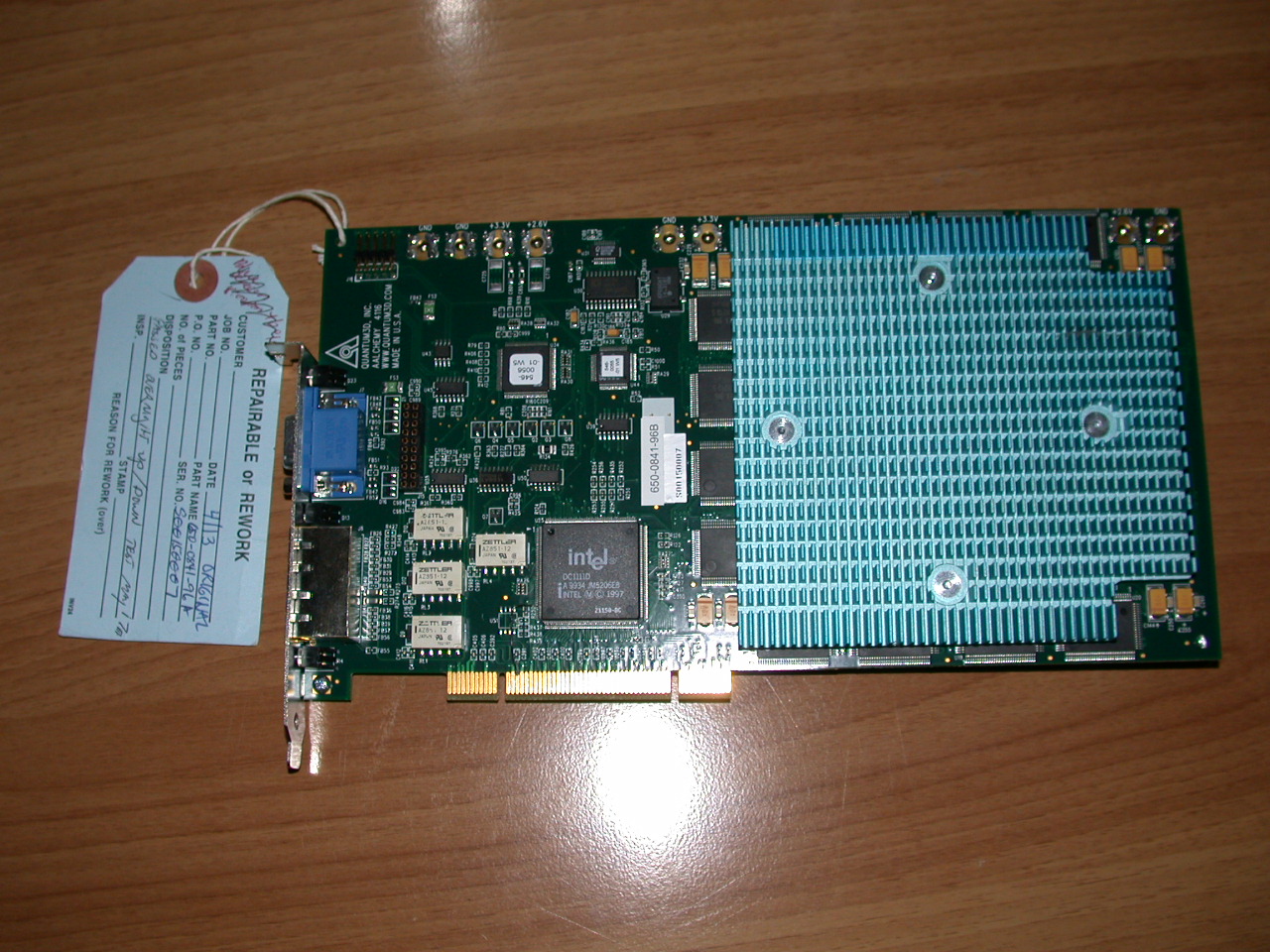

Look at,

4 VOODOO3(4 MONKEY ASSED)

who is the owner?
(AMIGAMERLIN)

3dfxFanatic · 12 November 2003, 18:35:57

marvelous!

lecram25 · 12 November 2003, 20:56:41

Don't think that's a Voodoo 3 based...
1) it has Aalchemy written on it...the Aalchemy system is based off of the VSA 100
2) AFAIK, q3d never used voodoo 3 chips (avenger)
3) there's a nice big Intel chip on the board, Voodoo 5 6k (1st revision?) anyone?

3dfxFanatic · 12 November 2003, 21:09:18

i think actually that q3d did use the avenger chips, and created sli with them

Rolo01 · 12 November 2003, 21:26:04

@ Knuckles

My V4-4800 actually is AGP 1.5V, but I also saw a PCI version on ebay a half year ago...

Hiero · 12 November 2003, 21:29:11

Hey that's an AAlchemy 4116. The smallest model with 4 Voodoo3 Chips and 16MB per Chip, so 64MB of memory. The design is great, the gpu's are mounted on the back to enable a better cooling.
Via the two LAN ports the card can be connected with other 4116 AAlchemy in SLI. Damn fast for a Voodoo3 but nothing compared to a AAlchemy 8164 with 8x VSAA-100 and 512MB.

< We`ll change the face of 3D graphics... again > 3dfx
