What is this Voodoo5 ? Agp 4x Support ?

sloomy · 15 October 2003, 00:42:02

Hello 3dfxzone.it Community !

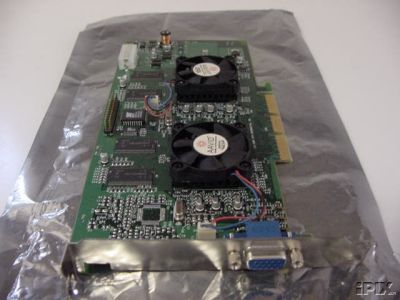

Have you any idea, that this VOodoo5 shown in the pictures on AGP 4X works ?( imean with lower voltage , not with 3,3 V) ?

Does anyone form the forum have same or similar card, (there is also the same card with LCD out, but this is pure engineering sample)

Thanks

kind regards

amp_man · 15 October 2003, 03:38:43

that is a voodoo 5 5500. it will not work with AGP 4x, and will therefore not work with the newer 1.5V standard. however, there are constantly threads on discussing possible ways to defeat this, ranging from a 1.5-to-3.3V adapter, an AGP-to-PCI adapter, or possibly adding something to the board itself to make it work. anyways, keep an eye out for threads like that, and for the time being, I hope you have a motherboard that supports 3.3V

EDIT: LCD out was not available on the V5 series cards. however, that you have the potential for something (i.e. the connector above the monitor output) is interesting, as mine does not have that. btw, I have a V5 5500 AGP also.

when the sun goes down, the music turns up...

Windows XP Pro|Athlon XP 1800+|GeForce2(temporarily, for compatibility purposes)|
MSI K7T266Pro2-A|768MB DDR 2700 RAM|SonicEdge 5.1 Sound Card|Sony 500 watt 5.1 surround sound

lecram25 · 15 October 2003, 04:27:55

Actually, amp_man, I'm gonna have to own you there buddy. That card is an engineering sample; notice the the extra notch on the agp slot.

QuoteEDIT: LCD out was not available on the V5 series cards. however, that you have the potential for something (i.e. the connector above the monitor output) is interesting, as mine does not have that. btw, I have a V5 5500 AGP also.

All the MAC series of Voodoo 5's had LCD (DVI) out, also, there are a few engineering samples, like his, that were made for PC, that have LCD out...like this one...

And here are a few more engineering samples...
Voodoo 4 4500 AGP (almost bought this one off of ebay for dirt cheap):

And the Voodoo 4 4800 PCI:

lecram25 · 15 October 2003, 04:31:47

To answer sloomy's question, yes, it will work in newer motherboards...but don't quote me on that...wait untill Mr. Semenec, and/or Bloodworm reply...

EDIT: * my spelling varies from time to time *

sloomy · 15 October 2003, 09:38:18

thanks for Qiuck replys and espec. @ lecram25 for exccellent pictures

I have also eventuell an VOodoo4 4500 PCI with this Bios Screen

this is the card:

Would that mean, that i have a Voodoo4 4500 PCi engineering sample for PC ? Or VOodoo Mac Versions can also show its Bios on a normal PC ? Because after this BIos, i don't get any picture on my screen, until after 7 minutes or so this picture is showing

for 5 seconds than again nothing more ?

Thanks for your answers and ideas

regards

vykupitel · 15 October 2003, 12:56:24

No, MAC version have different BIOS. They not show on PC. You must flash them with normal BIOS for V5. Look at Stanto`s page.

Does anybody here have this version V5 with AGP4x? I definitely need BIOS from that baby. I have VoodooMAC and I`d like to activate DVI output.

AthlonXP 2100+@2700+, 256MB PC266@333 RAM,MSI MS-746F Ultra,
Voodoo5 MAC PCI + Voodoo5 6000 rev. 3700 A

lecram25 · 15 October 2003, 20:37:34

vykupitel, maybe you should ask sloomy to dump the bios for you?

sloomy · 15 October 2003, 21:15:47

Have the Voodoo4 4500 and Voodoo5 5500 the same Bioses ? IF yes i have dumped the bios of this VOodoo4 4500 LCd and can send to your e mail ..

What about my questions over there ?

cheers

bloodworm · 15 October 2003, 23:08:23

looks like it will work in a 1.5V agp slot to me. the extra slot in the AGP connector is the tip off here. looks like a MAC V5 or a V5 5000 though. the 5000 only has 32MB of ram total but will work in a 1.5V slot.

sloomy · 15 October 2003, 23:35:25

How can you be sure ? I don't want to harm the card!! and of course also my system

lecram25 · 16 October 2003, 01:22:37

Well like Bloodworm said, the extra notch.

amp_man · 16 October 2003, 02:37:31

@lecram, I must agree (and admit defeat, this time), I failed to notice the extra notch in the AGP connector, which if I had been thinking I would have noticed after seeing the DVI connector area.
@sloomy, re: the V4 4500 PCI, do you have the "VGA palette snoop" option turned on in the BIOS? I have seen a similar problem caused by this.

when the sun goes down, the music turns up...

Windows XP Pro|Athlon XP 1800+|GeForce2(temporarily, for compatibility purposes)|
MSI K7T266Pro2-A|768MB DDR 2700 RAM|SonicEdge 5.1 Sound Card|Sony 500 watt 5.1 surround sound

beta · 16 October 2003, 02:37:42

The images in the first post show the Voodoo 5500 AGP 2.0 1.5/3.3V with universal edge connection. That PCB is the direct counterpart to the standard Voodoo 4 4500 AGP. It is The PCB that the Voodoo 5 should have had. It will still only run as a PCI 66 device though. It also facilitates LCD though the package is not installed unlike in the third post where the bracket has been removed and a LCD package soldered in place.

V5 5500 & V4 4500 sys' ~ Mandrake Linux 9.1

amp_man · 16 October 2003, 03:30:55

QuoteOriginally posted by beta

The images in the first post show the Voodoo 5500 AGP 2.0 1.5/3.3V with universal edge connection. That PCB is the direct counterpart to the standard Voodoo 4 4500 AGP. It is The PCB that the Voodoo 5 should have had. It will still only run as a PCI 66 device though. It also facilitates LCD though the package is not installed unlike in the third post where the bracket has been removed and a LCD package soldered in place.

V5 5500 & V4 4500 sys' ~ Mandrake Linux 9.1

cool beans! in other words, the V5 (except for the MAC, forgot to include that, oops) was not available with the DVI connector, it had to be added. and, as I stated before, AGP 4x will not work, or at least if it does will have damn near no effect. i guess the only thing you corrected me about was the 1.5V support. sorry lecram, you know how much I hate to argue with you

beta · 16 October 2003, 04:00:00

QuoteOriginally posted by amp_man

cool beans! in other words, the V5 (except for the MAC, forgot to include that, oops) was not available with the DVI connector, it had to be added. and, as I stated before, AGP 4x will not work, or at least if it does will have damn near no effect. i guess the only thing you corrected me about was the 1.5V support. sorry lecram, you know how much I hate to argue with you

when the sun goes down, the music turns up...

Partly correct, the 2x and 4x AGP rates don't function on the VSA-100 SLI config in general as it does not have a bridge controller, that is whatever signalling is used.

The DVI connector does not even have a location for installation on the 3.3V AGP 1.0 Dual SLI PCB, but on the one in the first post (1.5/3.3V AGP Universal 2.0 Dual SLI PCB) it does, just like the Voodoo 4 4500 AGP PCB, which also has a location for an S-Video package in addition.

V5 5500 & V4 4500 sys' ~ Mandrake Linux 9.1
